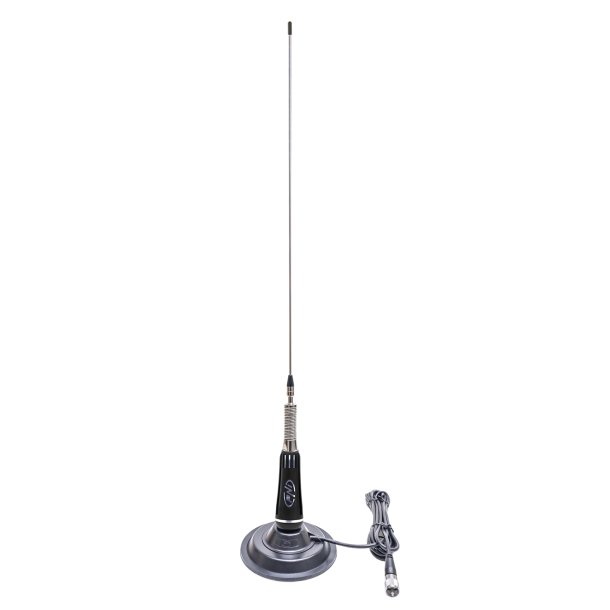

(inkl. moms)CB PNI LED 2000 antenna, 90 cm, with 145mm magnetic base, 26-28 MHz, 500 Watt, illuminates during transmission
LED coilPNI LED 2000 brings an innovative element in the field of CB antennas: the antenna coil lights up when the station emits. The higher the emission power, the higher the light intensity of the LED. |
|
|
|
performancesThe performance of the PNI LED 2000 antenna is closely related to the technical characteristics of the antenna in ideal mounting and use conditions: SWR <1.2: 1, maximum applied power 500 W, impedance 52 Ohms, stainless steel, etc. |
Communication distanceCommunication distance is another decisive factor when it comes to choosing a CB antenna. Thus, the maximum communication distance of 10 km is reached in ideal working conditions: calibrated antenna, open field without obstacles, the station with maximum legally allowed power of 4W and with a standard reception. Any obstacle such as hills, mountains, buildings can reduce this distance. |
|
|
|
LengthAntenna length is another important factor that can influence communication distance. Thus, the longer the antenna, the longer the range. PNI LED 2000 has a length of 90 cm (coil + spike). |
Accessories includedThe package includes a 145 mm magnetic base that allows the antenna to be attached to the car's dome and connected to the radio station via the PL259 cable and plug. |
|
| Product identification | |
| Product code | PNI-LED20-BM |
| Working tape | ? B |
| Product color (spike) | Silver |
| Coil color | Black |
| General characteristics | |
| Working frequency | 26 - 28 Mhz |
| Maximum power applied | 500W |
| Minimum SWR in the center of the band | less than 1.2: 1 |
| Length | Spike length: 750 mm Antenna length: 900 mm |
| Impedance | 50 Ohm |
| Material | Stainless steel |
| Connector tip | PL |
| Cable length | 4m |
| size | Antenna: 44 x 44 x 900 mm Magnetic base: 145 x 145 x 60 mm |
| Working distance | 10 km |
| Magnetic base | Yes, 145 mm |
| Operating temperature | -26 ° C ~ + 60 ° C |
| The package contains | |
| Radio station antenna | Yes |
| RG58 cable | Yes, 4 m |
| PL259 plug | Yes |
| Magnetic base | 145 mm |
